ยี่ห้อ (Brand): BESTSAFE

รุ่น(Model) : Kitchen Type 200

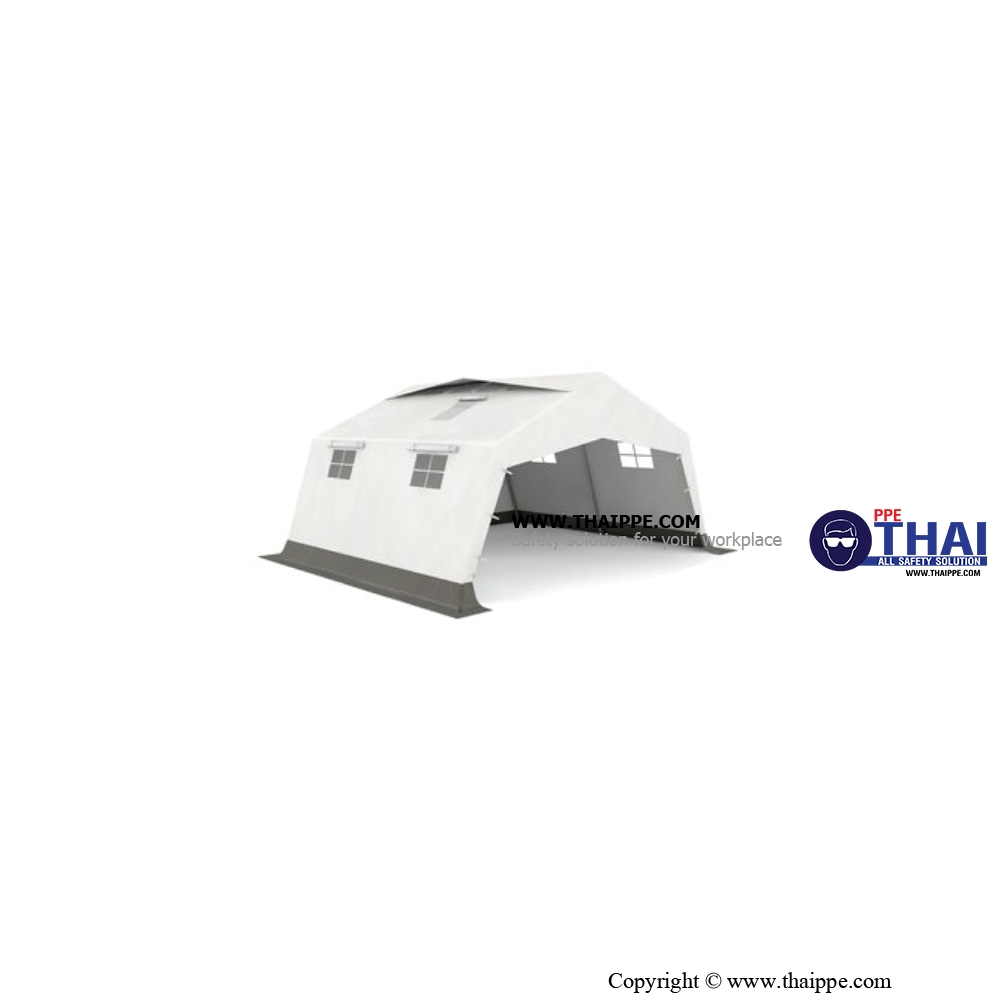

ชื่อสินค้า(Product name)  : Kitchen Type 200 Size 4.00 m * 4.74 m = 18.96 m

รายละเอียดสินค้า (Product detail) :

 4,00 m x 4,74 m = 18,96 m ²
Height side wall: 1,73 m
Height at ridge: 2,50 m
Weight: approx. 81 kg
Packing size: 0,33 m³

Standard
Roof, sides and gables are made of doublesided PVC-coated polyester fabric, white, flame-retardant according to DIN 4101 B1,gables detachable and divisible, walls can be rolled-up to the eaves, 4 windows with exterior shutters,  roof ventilation on both sides of the ridge, chimney passage (fire resistant) with exterior shutter, aluminium frame and accessories.

Frame
The frame system consists of anodized aluminium tubes, diameter 40 mm. The connectors and base plates are made of an aluminium alloy.

Wall thickness of 1.5 mm of the material AL Mg 4,5 Mn.
Yield strength: Rp0,2 = 330-340 N/mm2
Ultimate strength: Rm = 350-370 N/mm2

Peg, 20 mm diameter, hot-dip galvanised iron with top forged on, 700 g, 300 mm long
T-peg, galvanised iron, 300 mm long
Peg with hook, galvanised steel, 300 mm long
Features

Roof ventilation on both sides of the ridge, chimney passage (fire resistant) with exterior shutter,
